Drill machine TBH

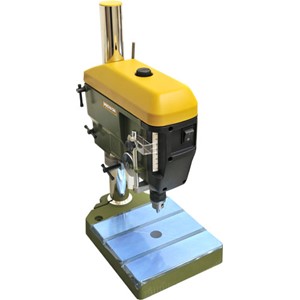

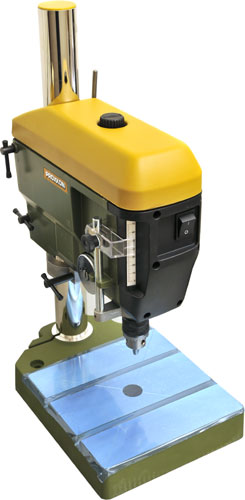

Bench drill press TBH

Powerful, long-lasting direct current motor. Spindle drive via triple belt pulley with the advantage of roughly 6 times the torque in the lower rotational speed range. Practical drill depth indicator with adjustable limit stop. Drill spindle with precision bearing. Spindle head with 1/2" thread for the corresponding RÖHM gear tooth chuck (industrial quality). Spindle with additional fit for steel collets NO 28 200. Ideal for jig boring with the compound table KT 150. Technical data: 220 - 240 Volt. Spindle rotational speeds 1,080, 2,400 and 4,500rpm. Sliding sleeve stroke 63mm. Height adjustment via crank 70mm. Throat 140mm. Usable table surface 200 x 200mm. Column 45 x 500mm. Tool holder up to 10 mm. Drilling performance in steel 10mm. Weight approx. 10kg.
