Bænkboremaksine

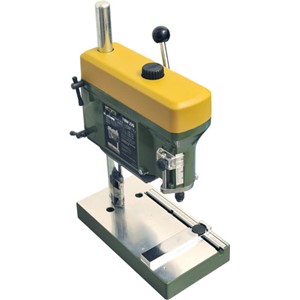

Bench drill machine TBM 220

Machined worktop of high quality, ribbed die-cast aluminium (220 x 120mm). Adjustable fence with scale. Solid, hard-chromed steel column, 340mm high, 20mm diameter. Super stable die-cast head with VDE approved 220 - 240V motor. Very quiet and of long life expectancy type. Power transmission by aluminium pulleys and flat belt. Three spindle speeds (triple torque at low speeds). Feed lever with adjustable depth scale. Technical data: 220 - 240V. 85W. 50 - 60Hz. Spindle speeds of 1,800, 4,700 and 8,500 rpm. Extremely high rotational accuracy, 30mm feed. Throat depth (column to drill spindle) 140mm. Six triple slit precision collets for shaft sizes 1.0 - 1.5 - 2.0 - 2.4 - 3.0 - 3.2mm are included. 3/8" thread. Weight 3.3kg.
